Multi -Purpose Zoom AZ100/100M

Feature
  • Mono Zoom Mechanism(단일축 줌)방식
    8:1 줌 다기능 현미경
  • Zoom range 1X-8X
  • Brightfield, Polarizing, EPI-fluorescence, Coaxial episcopic, DIC의 다양한 결합으로 폭 넓은 샘플 관찰이 가능
  • F.O.V 22mm
  • Trinocular head 3안(Camera option)
  • 사용자 눈높이에 따라 최대 50-75mm 높이 조절 가능
  • 최대 400X까지 가능
  • 3개의 렌즈 동시 장착 Triple Nosepiece




A wide range of magnifications Superior flexibility

Zoom click mechanism on knob


Triple Nosepiece

Tilting eyepiece tubes



Double-coarse/fine focusing system
  • Laser ready for 355nm to 1064nm spectrums
  • Up to 2000x magnification
  • 1㎛ resolution and 45lbs mountable weight focusing block
  • Convenient parcentration



Double-coarse/fine focusing system
Focusing can be done using either the AZ column or stage focus controls.
Since the stand column offers an 85mm stroke and the stage focus a 10mm stroke,
even tall samples can easily be observed. Focusing front table-level controls,
without having to reach above the sample.

* Differs depending on the objectives and stand combination


Focusing Block

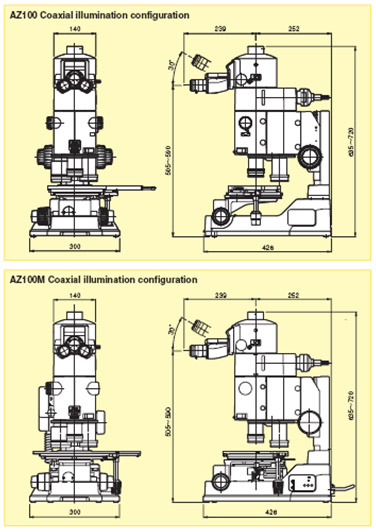

Dimension unit : mm




AZ100/100M Specifications
  AZ100 AZ100M
Total
magnification
5x to 400x(6.25x to 500x) when coaxial illuminator is mounted)
Depends on the combination of eyepiece lenses and objective lenses
Zoom range 1 to 8
(zoom ratio:8:1)
1 to 8
(zoom ratio:8:1,motorized variable power zoom)
Eyepiece
tubes
AZ-TE 100 Ergonomic Trinocular Tube 100
(beamsplit ratio 100:0/0:100,0.6x reduction optics built into photo port)
AZ-TE80 Ergonomic Trinocular Tube 80
(beamsplit ratio 100:0/20:80,0.6x reduction optics built into photo port)
AZ-T P DSC Tube 0.6x
(direct tube type, 0.6x reduction optics built in)
Inclination
angle
0 to 30 degrees(eyepiece tube AZ-TE100/AZ-TE80)
Interpupillary
adjustment range
50 to 75mm(eyepiece tube AZ-TE100/AZ-TE80)
Eyepiece lens AZ-W10x eyepiece 10x(FOV:22mm)
Focus mount
adapters
AZ-FM AZ Focusing Mount Adapter(for AZ stand),
AZ-SMZ SMZ Focusing Mount Adapter(for SMZ stand)
AZ-LV LV Focusing Mount Adapter(for LV-IMA/LV-IM)
Stands AZ-STE Episcopic Stand/AZ-STD Diascopic
Stand:
(focus mount section:focusing stroke,85mm;
coarse,
18.5mm/rotation;fine,3.27mm/rotation
Stage focus section:focusing stroke,10mm;
coarse,37.7mm/
rotation;fine,0.27mm/rotation)
C-PS160 Plain Stand,
C-BD Diascopic Bright/Darkfield Stand
AZ-STDM Motorized Focusing Diascopic Stand
(Focus mount section:85mm stroke, motorized vertical movement, Note:Manual operation is
not possible while power is on)
Stages AZ-STGE EPI Stage
(150x150mm stroke only with AZ100),
AZ-STGD DIA Stage
(150x100mm stroke)
Objective
lens mounts
AZ-NP3 Triple Nosepiece l,
AZ-NPS Single Nosepiece
AZ-FLDIC FL-DIC Prism Holder
(when simultaneously mounting
epi-fluorescence and diascopic
DIC attachments)
AZ-NPI Triple Nosepiece l,
AZ-FLDIC FL-DIC Prism Holder
(when simultaneously mounting
epi-fluorescence and diascopic
DIC attachments)
Objective
lenses
AZ-Plan Apo 0.5x(NA:0.05/WD:54mm),
AZ-Plan Apo 1x(NA:0.1/WD:35mm)
AZ-Plan Fluor 2x(NA:0.2/WD:45mm),
AZ-Plan Apo 4x(NA:0.4/WD:20mm)
AZ-Plan Fluor 5x(NA:0.5/WD:15mm)
Illuminators AZ-ICI Coaxial Episcopic illuminator
(C-FI115/230 Fiber illuminator:12V100W halogen lamp);device magnification:1.25x
AZ-LED LED Ring illuminator,C-FID Plastic Fiber Optics Bifurcated illuminator
(C-FI115/230 Fiber illuminator:12V100W halogen lamp)
Light source for
epi-fluorescence
observation
C-HGF I HG Precentered Fiber illuminator(130W mercury lamp),
C-HGFIE HG Precentered Fiber illuminator(motorized;130W mercury lamp),
Lamphouse HMK-4B(100W mercury lamp)
Observation
methods
Reflected light:coaxial illumination, Nomarski DIC,fluorescence
(up to four filter cubex are mountable),
and LED illumination observation
Transmitted light: brightfield, Nomarski DIC,
simple polarizing,and oblique illumination observation
Weight Coaxial illumination configuration
(when using AZ-STE Episcopic Stand):
approx26kg
epi-fluorescence+diascopic DIC configuration
(when using AZ-STD Diascopic Stand)
:approx26kg
Coaxial illumination configuration:
(when using AZ-STDM Motorized Focusing
Diascopic Stand) : approx29kg
epi-fluorescence+diascopic DIC configuration:
(when using AZ-STDM Motorized Focusing
Diascopic Stand)
:approx29kg
