영상현미경
home > 제품소개 > 영상현미경
Z 14

Feature
  • 영상 줌 현미경
  • 41만화소의 CCD Camera
  • 19" 모니터 기준 14X에서 최대영상배율 96X
  • 1X Objective Lens 장착 시 14X에서 3.9x2.9mm의 넓은 F.O.V로 큰 사이즈의 시료 관찰이 용이
  • Long Working Distance
  • Auto White Balance, Auto Focusing, Auto Zoom, Fine Zoom
  • 품질검사, 분석, 연구, 교육용으로 산업 전반에 걸쳐 폭 넓게 사용
  • Hand Remote, Controll for the CCD Zoom System
  • Foot pedal, Change magnification, via front or back step to
    free control of hands
  • Motic Quality Software, 측도설정을 통한 측정, 보정, 분석, 데이터베이스 등이 가능
  • PCB, 금속표면 등 산업 전반에 활용

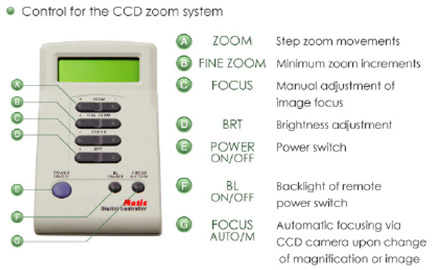

Hand Remote


Standard package,The hand remote controls the magnification of the system In addition to controlling the
magnification, the hand remote manipulates the focus, brightness, and manipulates the focus, brightness,
and operation of the overall system.

Manual Movement Stand


The manual movement stand provides a 400mmx350mm working surface with individual lockable X and Y axis
movements.

Mechnical Stage


The mechanical stage is a convenient attachment for easy movements.
The stage has a 75mm(x) x 40mm(y)
movement that one's hand cannot provide.

Schematic Diagrams(unit:mm)


Plain Stand Manual Movement Stand

Z14 Specification
Purpose
Video inspection and observation, Simple measurement, Specimen cataloging
Zoom Body Standard Magnification 1.7X - 23.7X(0.5X Objective,15" monitor,1024x768 Display Format
Zoom Ratio 1:14
Standard Object Field 110.0mm x 80.3mm - 7.9mm x 5.7mm
Standard Working Distance 172mm(0.5x Objective)
Magnification Controls Step and fine zoom via hand remote
Optional Magnification 3.4x - 47.7x(1.0x Objective, 15 monitor, 1024 x 768 Display Format
Optional Object Field 55.0mm x 40.2mm - 3.9mm x 2.9mm
Optional Working Distance 75mm(1.0X Objective)
Optional Magnification Controls
Fine zoom via foot pedal
Fine and step zoom via computer
Camera Sensor 1/4" Built-in
Maximum Pixels 795x596[470K]
Effective Pixels 752x582[440K]
Recognition >480 lines
Output USB2.0. Composite, S-Video[simultaneous]
System PAL/NTSC
Scanning Frequency 15.625 khz[horizontal], 50khz[vertical]
White Balance Auto
Sensitivity 1 lux
Hand Remote Zoom Movements Step and fine
Focus Control Switch between, Auto and Manual; control manual focus
Brightness Control Manual controls brightness positive and negative
Capture Card Function Capture and measure
Supports RGB 32.24.12
Input Signal S-Video and RCA
Output Signal and RCA
Maximum Capture Window 640 x 480
Supported Systems NTSC/PAL
Software Standard Software Motic Images Plus 2.0 ML[Multi-language]
Functions Manual measurements; Image filters;Auto
Stand Standard Stand 2112:Incident large working area stand
Focus Travel 48mm
Head Mount 74mm
Power Imput Voltage 90V-240V Universal Power Supply
Dimenstions System Only 363mm(h) x 330mm(w) x 280mm(d)
Shipping Dimensions 460mm(h) x 400mm(w) x 400mm(d)
